High speed automatic Four Roll Planetary Axis – (Model No. 4R---CSPANC)

The pre bending / edge bending and rolling can be performed in the same machine.

Machine View 1

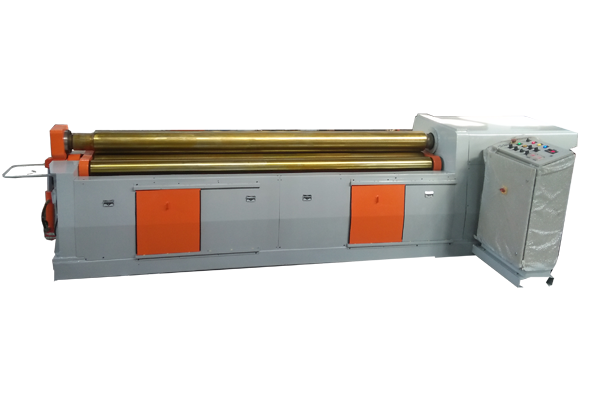

Machine View 2

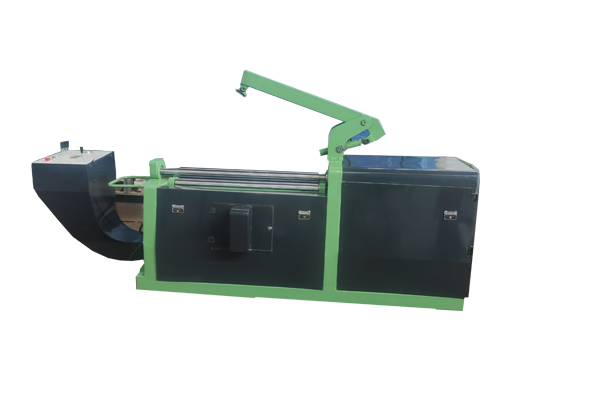

Machine View 2

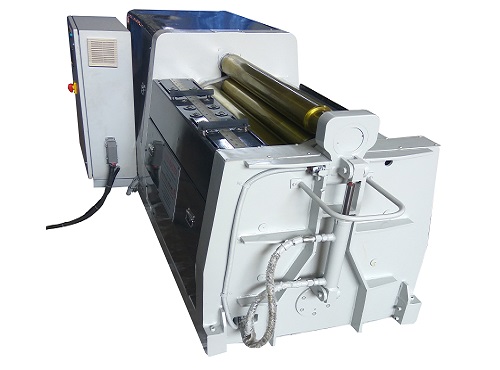

Machine View 2

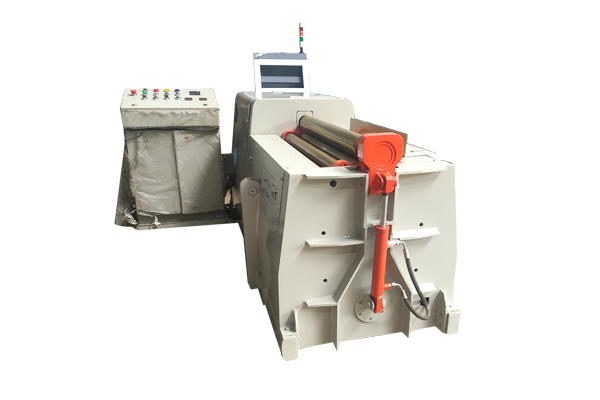

Machine View 2
❮ ❯

Advantages

  • High-speed fully automatic machine can deliver an output of up to 200 pieces per hour
  • Since all roll movement and roll rotation are completely numerically controlled, skilled manpower is not required
  • Specially developed hydraulic circuit to achieve side roll positional accuracy within ±0.2 mm
  • Since all rolls are mounted in roller bearings, the electrical consumption is reduced by 50% compared to conventional pyramid type machines

Special Features

All our machine rolls are mounted in heavy duty roller bearings. Each roller is fitted with two bearing per side (four bearing per roller).

A movable control desk is conveniently located on machine. The main panel start / stop buttons and roll rotation fucntion (Reverse / forward) is provided on the same. The Top roll left side position and right side position are indicated separately by four digital meters.

A specially designed & built mechanism allows drop end frame to tilt down in horizontal position without much efforts (one person can perform job). No need to dismantle frame from main body like in conventional machine. The top roll can be tilted to great degree of inclination making it most convenient and ease to remove rolled shells without any difficulty

All our machine rolls are mounted in heavy duty roller bearings. Each roller is fitted with two bearing per side (four bearing per roller)

Standard Featues

  • All rolls are manufactured from alloy steel material
  • Both top and bottom rolls are positively driven by an inline mounted planetary gearbox and hydraulic motor

Optional Featues

  • Special alloy steel material for hardened rolls with hardness up to 52–60 RC
  • All 4 rolls are positively driven
  • Overhead support
  • Auto plate squaring reference stopper
  • Feeder table
